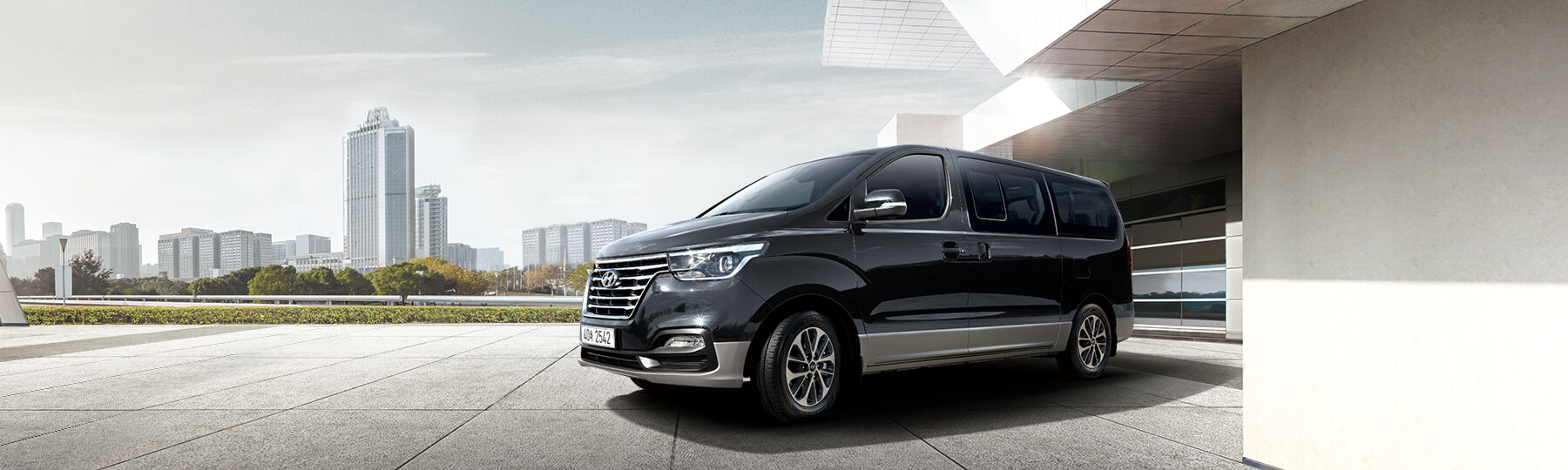

GRAND STAREX Urban key visual


Expanding the boundaries of your lifestyle

  • 9-Seater Exclusive KRW 30,900,000
  • 9-Seater Exclusive Max output 175 PS / 3,600 rpm
  • 9-Seater Exclusive Max torque 46 kg·m / 2,000~2,250 rpm


Front, rear, and side images of GRAND STAREX Urban and specifications
* Unit: mm
* Specifications in parentheses are for 3-/5-seater Diesel Van.
모델별 제원정보
Category 2.5 Diesel Urban
Overall length (mm) 5,150
Overall width (mm) 1,920
Overall height (mm) 1,925(1,970/4WD)
Wheelbase (mm) 3,200
Wheel Tread, Front (mm) 1,685
Wheel Tread, Rear (mm) 1,660
Engine type CRDi
Displacement (cc) 2,497
Max output (PS/rpm) 175 / 3,600
Max torque (kg.m/rpm) 46 / 2,000~2,250
Fuel tank capacity (ℓ) 75
Government-certified Standard Fuel Efficiency and Class
Government-certified Standard Fuel Efficiency and Class
2.5 Diesel 2WD (Automatic 5-gear) Government-Declared Fuel Efficiency - Combined 9.4km/ℓ(City : 8.4km/ℓ, Highway : 11.0km/ℓ)
CO2 Emissions : 210g/km l Displacement : 2,497cc l Empty Vehicle Weight:2,330kg l Automatic 5-gear (Class 4)
2.5 Diesel 4WD (Automatic 5-gear) Government-Declared Fuel Efficiency - Combined 8.9km/ℓ(City : 8.0km/ℓ, Highway : 10.3km/ℓ)
CO2 Emissions : 220g/km l Displacement : 2,497cc l Empty Vehicle Weight:2,440kg l Automatic 5-gear (Class 5)
  • Please adhere to the designated speeds on the road f or maximum fuel efficiency.
  • The above fuel economy was calculated based on standard driving conditions. Actual fuel efficiency may vary depending on road conditions, driving styles, cargo weight, maintenance conditions, and outside temperatures.
  • The above engine performance data is based on the net value, which is a legal requirement applied by the Ministry of Land, Infrastructure and Transport from 1997 on wards. To produce the data, an advanced measurement method that takes into account the resistance of vehicle emissions was used. This method may generate results slightly lower than those generated by existing methods based on the gross value.
  • Leather seats contain some artificial leather.
  • Hyundai Motor vehicles are sold by Car Masters of Hyundai Motor Company’s branches and dealers only at prices uniformly applied everywhere across the country to promote fair business practices.
  • The failure to use authentic parts and oil products (including engine oil and transmission fluid) recommended by Hyundai Motor Company and/or the use of defective fuel may critically damage your vehicle.
  • According to the Rules on Automobile Safety Standards from the Ministry of Land, Infrastructure and Transport, installation of a speed limit device system to restrict the vehicle's speed to 110km/h or under is mandatory on 11 and 12-seater vans manufactured after August 16, 2013.
  • The images and information provided in the showroom are to assist in customer understanding only. They may be different from the actual vehicle depictions and information and are subject to change without notice for vehicle performance improvement.

Tire Efficiency Level

타이어 효 율등급
Tire Efficiency Level
Tire manufacturer Tire specifications Rolling resistance coefficient (RRC) Wet grip index (G)
Hankook 215/70R16C 4 1
Nexen 215/70R16C 4 3
Nexen 215/65R17XL 3 3
  • Rolling Resistance Coefficient (RRC) Class: Ratio of rolling resistance on a tire at a certain load (RRC is divided into five classes (1~5); a smaller number indicates higher consumption efficiency).
  • Wet Surface Braking Force (G): Ratio of a tire’s braking performance on a wet surface compared to a benchmark (reference) tire (wet surface braking force is divided into five classes (1~5); a smaller number indicates better braking force on a wet surface).
  • Efficiency level may differ even if the tire size is identical. Furthermore, some information may be updated without advance notice.
Contact us
Warranty and repairs
Chassis and general parts Key parts of engine and powertrain
2 Years/40,000km 3 Years/60,000km
  • Application of Warranty Period: Warranty period begins from sale date of new car and expires when the specified period or mileage, whichever comes first, is reached.
  • The optional warranty service will be applied from the vehicle released after January 1, 2018
  • More information on optional warranty periods is available at service centers, through our customer center (080-600-6000), on the Hyundai Motor Company website, or through the My Car Story app. The warranty can be changed to any of the options above during the respective warranty period. (Excludes Genesis brand, Porter, Starex, taxis and commercial vehicles)
  • Warranty Period for Cooling/Heating System Parts: Same as for chassis and general parts (regardless of mileage if under 1 year)
  • Hybrid Parts: High-voltage battery, drive motor, inverter, DC converter, HPCU (Hybrid Power Control Unit)
  • Special Warranty for Electric Vehicle Parts: EPCU (Electric Power Control Unit), slow charger, high-voltage battery, drive motor, decelerator
  • FCEV Parts for Separate Warranty: Fuel cell, driving motor, decelerator, inverter, fuel cell control unit (FCU), high-voltage battery, integrated DC converter (IDC), fuel pressure regulator, fuel tank valve
  • First Customer for Hybrid/Electric Vehicles: This refers to a new customer who has purchased and owns the car at the time it is registered for the first time (individuals only, self-employed/corporations and lease/rental vehicle customers excluded).
  • The warranty period for CNG high-pressure containers in commercial vehicles applies for a period of 3 years regardless of mileage.
  • For H Genuine Accessories, the optional warranty period for the chassis/general parts/cooling and heating system parts is not applied.
  • For additional details on warranty period, refer to separate manufacturer warranty (varies by vehicle type and item).
