Specifications

Home ECO Ioniq electric Specifications

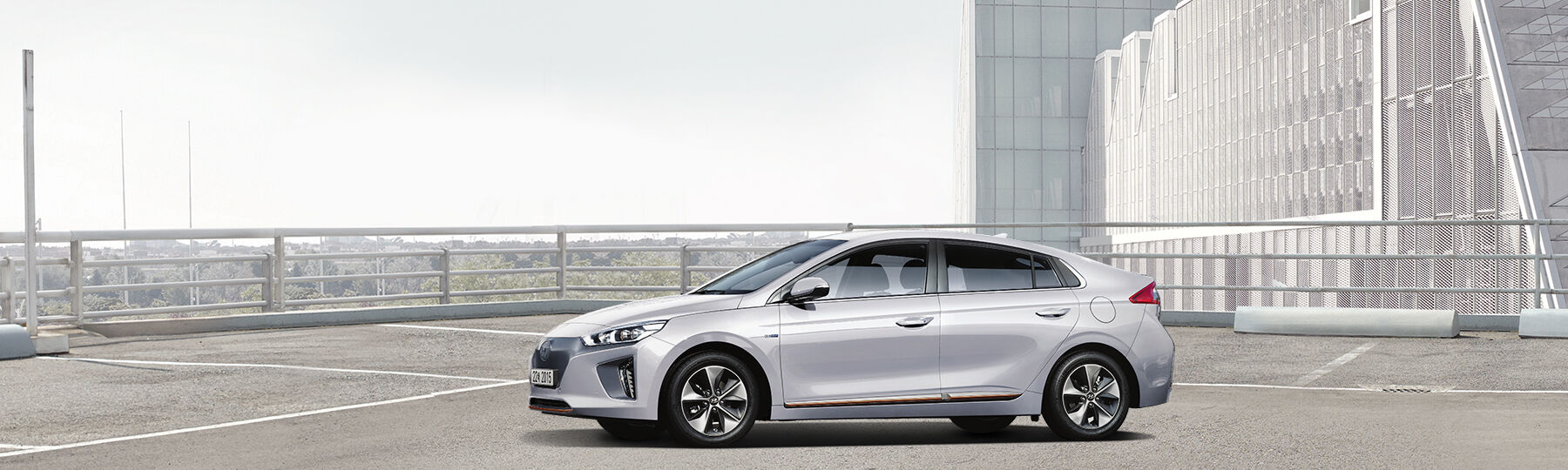

IONIQ electric Key Visual

IONIQ Electric

The beginning of new mobility

  • IONIQ Electric N KRW 39,150,000 (after tax benefits)
  • IONIQ Electric N Max output 119.7Ps/ 88kW
  • IONIQ Electric N Max torque 30.1kgf / 295Nm

IONIQ Electric

Unit: mm, wheelbase based on 205/55 R16 tires

Front, rear, and side images of IONIQ Electric and specifications
  • Front, rear, and side images of IONIQ Electric and specifications
  • Front, rear, and side images of IONIQ Electric and specifications
  • Front, rear, and side images of IONIQ Electric and specifications
Specifications
Category IONIQ Electric
Overall length (mm) 4,470
Overall width (mm) 1,820
Overall height (mm) 1,450
Wheelbase (mm) 2,700
Before wheel track (mm) 1,555
After wheel track (mm) 1,564
Battery type Lithium ion polymer
Battery capacity (kWh) 28
Motor type Permanent magnet synchronous motor
Motor max output (PS) 119.7 (88kW)
Max motor torque (kgf/m) 30.1 (295Nm)
Government-certified Standard Fuel Efficiency and Class
Government-certified Standard Fuel Efficiency and Class
IONIQ electric Combined 6.3km/kWh (City: 6.9km/kWh; Highway: 5.8km/kWh)
CO2 Emissions: 0g/km I Rated Voltage of Battery (Current Capacity) : 360V(78Ah) I Empty Vehicle Weight: 1,430kg
Driving Range per Charging - Combined: 200km (City: 217km, Highway: 179km)
  • Directions for Efficient Use: Drive at constant speed
  • The fuel efficiency above is based on the standard model and can be different from the actual fuel efficiency experienced depending on road conditions, driving habits, vehicle load status, vehicle maintenance status, and ambient air temperature.
  • Some of the photos in this showroom are applied with optional features and can be different from the actual vehicle images.
  • The specifications and colors displayed in the showroom are subject to change for vehicle exterior and performance improvement.
  • The engine performance above is the NET value. “NET value” is a legal requirement of the Ministry of Land, Infrastructure and Transport, which has been prescribed for application since 1997. It is a new fuel efficiency measuring technique that takes into consideration emission gas resistance. Compared to the previous GROSS value, the NET value can be slightly lower.
  • Leather seats partially include artificial leather.
  • Vehicle colors in the showroom can differ slightly from actual colors.
  • Some specifications for rental cars can be different. Refer to the price list for the current month for detailed specifications.
  • Mileage can change based on driving habits, road conditions, external temperature, and air conditioning system settings.
  • Hyundai Motor Company sells vehicles only through Car Masters in its branches and agencies. It practices good trading at the same prices for the same products all over the country.
  • Use of low-quality fuel or parts other than the genuine parts designated by Hyundai Motor Company (including engine oil and transmission oil) can result in critical damage to the vehicle.
  • Refer to user manual for details on new technologies and specifications introduced in the showroom.

Tire Efficiency Level

타이어 효 율등급
Tire Efficiency Level
Tire manufacturer Tire specifications Rolling resistance coefficient (RRC) Wet grip index (G)
Michelin 205/55R16 2 4
  • Rolling Resistance Coefficient (RRC) Class : Ratio of rolling resistance on a tire at a certain load (RRC is divided into five classes (1~5); a smaller number indicates higher consumption efficiency).
  • Wet Surface Braking Force (G) : Ratio of a tire’s braking performance on a wet surface compared to a benchmark (reference) tire (wet surface braking force is divided into five classes (1~5); a smaller number indicates better braking force on a wet surface).
  • Efficiency level may differ even if the tire size is identical. Furthermore, some information may be updated without advance notice.
CONTACT US
Warranted repair
2x2
Chassis and general parts Key parts of engine and powertrain
Released after Jan. 1, 2018
Optional warranty period: 2 years/80,000km, 3 years/60,000km, or 4 years/40,000km
(can be changed anytime during the warranty period after the product has left the warehouse)		 5 years/100,000km
  • Application of Warranty Period: Warranty period begins from sale date of new car and expires when the specified period or mileage, whichever comes first, is reached.
  • Optional warranty service is applied to vehicles that leave the warehouse from January 1, 2018.
  • More information on optional warranty periods is available at service centers, through our customer center (080-600-6000), on the Hyundai Motor Company website, or through the My Car Story app. The warranty can be changed to any of the options above during the respective warranty period. (Excludes Genesis brand, Porter, Starex, taxis and commercial vehicles)
  • Warranty Period for Cooling/Heating System Parts: Same as for chassis and general parts (regardless of mileage if under 1 year)
  • Electric Parts: High-voltage battery, drive motor, inverter, DC converter, HPCU (hybrid power control module)
  • Special Warranty for Electric Vehicle Parts: EPCU (electric vehicle power control module), slow charger, high-voltage battery, drive motor, decelerator
  • First Customer for Electric Vehicles: This refers to a new customer who has purchased and owns the car at the time it is registered for the first time (individuals only, self-employed/corporations and lease/rental vehicle customers excluded).
  • The warranty period for CNG high-pressure containers in commercial vehicles applies for a period of 3 years regardless of mileage.
  • For TUIX parts, the optional warranty period for the chassis/general parts/cooling and heating system parts is not applied.
  • For additional details on warranty period, refer to separate manufacturer warranty (varies by vehicle type and item).
