01 At a Glance: The All-New Hyundai IONIQ line-up
02 Design: Efficiency and technology
03 Powertrains: The power of choice for customers
04 Advanced engineering and technology: Setting the IONIQ line-up apart
05 Driving performance: Low-to-zero emission mobility without compromise
06 Comfort and convenience: Top-class and trend-setting
07 Safety: Innovative active and passive safety features
01 At a Glance – the All-New Hyundai IONIQ line-up
• World’s first vehicle platform with three electrified powertrains, making low- to zero-emission mobility accessible to everyone
• Innovative IONIQ offers customers uncompromised driving experience and design
• Latest connectivity and active safety features enhance IONIQ’s efficient package
At the 2016 Geneva Motor Show, Hyundai Motor is introducing the All-New Hyundai IONIQ line-up consisting of: IONIQ Hybrid, IONIQ Electric and IONIQ Plug-in. The world’s first model offering three electrified powertrains, IONIQ will make low- to zero-emission mobility accessible to everyone. The new approach of Hyundai Motor delivers an uncompromising design and driving experience through innovative technology and offers customers the latest connectivity and safety technologies.
The All-New Hyundai IONIQ is an important milestone in Hyundai Motor’s sustainability strategy, bringing to life the brand’s new thinking through new innovative technologies and extending the company’s product range to support further organic sales growth in Europe.
Jochen Sengpiehl, Vice President Marketing at Hyundai Motor Europe, said: “IONIQ is an important step forward for our brand in Europe. We are bringing a unique new approach to e-mobility, with no compromise on great design, driving pleasure and new connectivity features. And we’re making it accessible to more customers, further extending our product line-up.”
The IONIQ Hybrid and IONIQ Plug-in both feature the new Kappa 1.6 GDI, direct injection petrol, four-cylinder engine with a class-leading thermal efficiency of 40 percent, delivering 105 PS and 147 Nm of torque. The engine has been tailored to the hybrid application and is combined with the direct responding, smooth shifting six-speed double clutch transmission – differentiating the IONIQ from its competitors with a more dynamic driving experience. The mated electric motor enables pure electric driving and delivers instant torque as the chassis with rear multi-link suspension greatly enhancing driving dynamics.
The IONIQ Hybrid’s electric motor delivers 32 kW (43.5 PS) with maximum torque of 170 Nm, powered by a lithium-ion battery with 1.56 kWh capacity positioned under the rear seats. In combination with the 1.6-GDI engine, IONIQ Hybrid offers a system output of 103.6 kW (141 PS) rpm and up to 265 Nm of torque accelerating to a top speed of up to 185 km/h with targeted CO2 emissions as low as 79 g/km or lower (combined).
Drivers choosing the IONIQ Plug-in can safely rely on over 50 kilometres of estimated pure electric driving range powered by the potent 8.9 kWh lithium-ion battery. The 45kW (61 PS) electric motor together with the 1.6 GDI four-cylinder Kappa engine offer targeted CO2 emissions as low as 32 g/km.
The IONIQ Electric offers pure e-mobility through a 28 kWh lithium-ion battery for an estimated maximum range of over 250 km. The instantly available maximum torque of 295 Nm is delivered by the electric motor with a maximum output of 88 kW (120 PS) through the single-speed reducer transmission accelerating the car up to 165 km/h.
The customer experience inside the IONIQ line-up is enhanced through state-of-the art connectivity features like Android Auto, Apple CarPlay as well as TomTom live services and wireless charging of your smartphone. Furthermore, the driving experience becomes digital through the 7-inch TFT instrument cluster displaying all key driver information.
A holistic and innovative safety package including Autonomous Emergency Braking, Lane Keep Assist System, Blind Spot Detection, Rear Cross Traffic Alert and Smart Cruise Control ensures high safety levels for drivers and passengers alike.
All versions feature the sleek aerodynamic silhouette with a class-leading Cd value of 0.24 that complements the soft lines and surfaces that trace the All-New IONIQ’s outline. A fluid exterior shape and natural air flow channels emphasize the aerodynamic body lines and volumes.
Blue accents in the IONIQ Hybrid and IONIQ Plug-in emphasize specific elements on the exterior and in the interior for a seamless design. The IONIQ Electric features exclusive copper coloured accents to create the impression that electricity is flowing through the car’s interior inspired by copper’s property of being a conductor of electricity.
Thomas A. Schmid, Chief Operating Officer at Hyundai Motor Europe, said: “With our pioneering ix35 Fuel Cell electric vehicle and several hybrid and plug-in hybrid models sold around the world, Hyundai Motor already has a proven capability in electrified powertrains. Now, with the launch of our first dedicated model, we are taking the lead as the only car manufacturer with hybrid, electric, plug-in hybrid and fuel cell vehicles in production.”
02 Design: efficiency and technology
Hyundai Motor’s IONIQ line-up calls upon two key influences – efficiency and technology – in its design, which combine to create a unique and future-looking appearance. Throughout the entire development phase engineers and designers worked hand-in-hand to ensure that form and function evolved simultaneously.
These aims are met consistently throughout each of the IONIQ models – the IONIQ Hybrid, the IONIQ Plug-in and the IONIQ Electric. The joined-up development process influences the attractive styling of all versions as form and function combine seamlessly. Distinguished exterior design sets IONIQ apart from its competitors as the styling builds the car’s high-tech features into their design, emphasizing the efficiency of the whole range.
Exterior design
In crafting the exterior appearance of IONIQ, Hyundai Motor’s designers concentrated on the car’s future-orientated character, which is at the heart of its appeal. A fluid exterior shape and natural air flow channels emphasize the aerodynamic body lines and volumes. A sporty, hatchback-like profile sets the IONIQ apart with the car’s distinguished exterior design contributing to its attractive styling.
IONIQ’s sleek exterior shape is inspired by aerodynamic efficiency complementing the soft lines and surfaces that trace the car’s outline. Its exterior panels are designed to flex to boost aerodynamics further, which, when combined with various other smart efficiency solutions, produces class-leading Cd value of just 0.24.
In addition to the IONIQ’s aerodynamics body shape, further design details distinguish the Hybrid, the Plug-in and the Electric versions from another creating their unique identity.
The IONIQ Hybrid
The front of the IONIQ Hybrid is characterised by the Bi-xenon headlights that are embraced by the C-shaped LED positioning lamps. Hyundai Motor’s signature hexagonal grille and the vertical C-shaped LED daytime running lights further depict the purity of the car. Contrasting colours at the base of the bumper add an individual character while nine exterior colours are available and can be paired with a choice of two interior options. The colour choices for the exterior of IONIQ Hybrid and Plug-in are Phantom Black, Polar White and Platinum Silver along with Aurora Silver. Also available are Iron Grey, Marina Blue and Phoenix Orange as well as Mist Meadow and Chalky Brown. The interior colour choices are Lava Stone or Afternoon Breeze. The IONIQ Hybrid features specially-designed two-tone 15- or 17-inch wheels.
The IONIQ Plug-in
Adopting most general exterior design details from the Hybrid, like the hexagonal grille and the vertical C-shaped LED daytime running lights, the IONIQ Plug-in will additionally feature low-beam LED headlamps. Depending on the exterior colour, an elegant blue or silver character line below the front and rear bumpers is a design feature both the IONIQ Hybrid and the IONIQ Plug-in have in common. For exterior colours Marina Blue and Phoenix Orange the accents will be carried out in silver. All other exterior colours feature the blue character line. These accents are also carried on fully through the interior of both models, for example with blue or white piping on the car seats. Naturally, the Plug-in, has an additional cap for the charging socket at the left front fender for charging the lithium-ion battery that together with the 1.6 GDI engine sets the specially designed 16-inch wheels in motion.
The IONIQ Electric

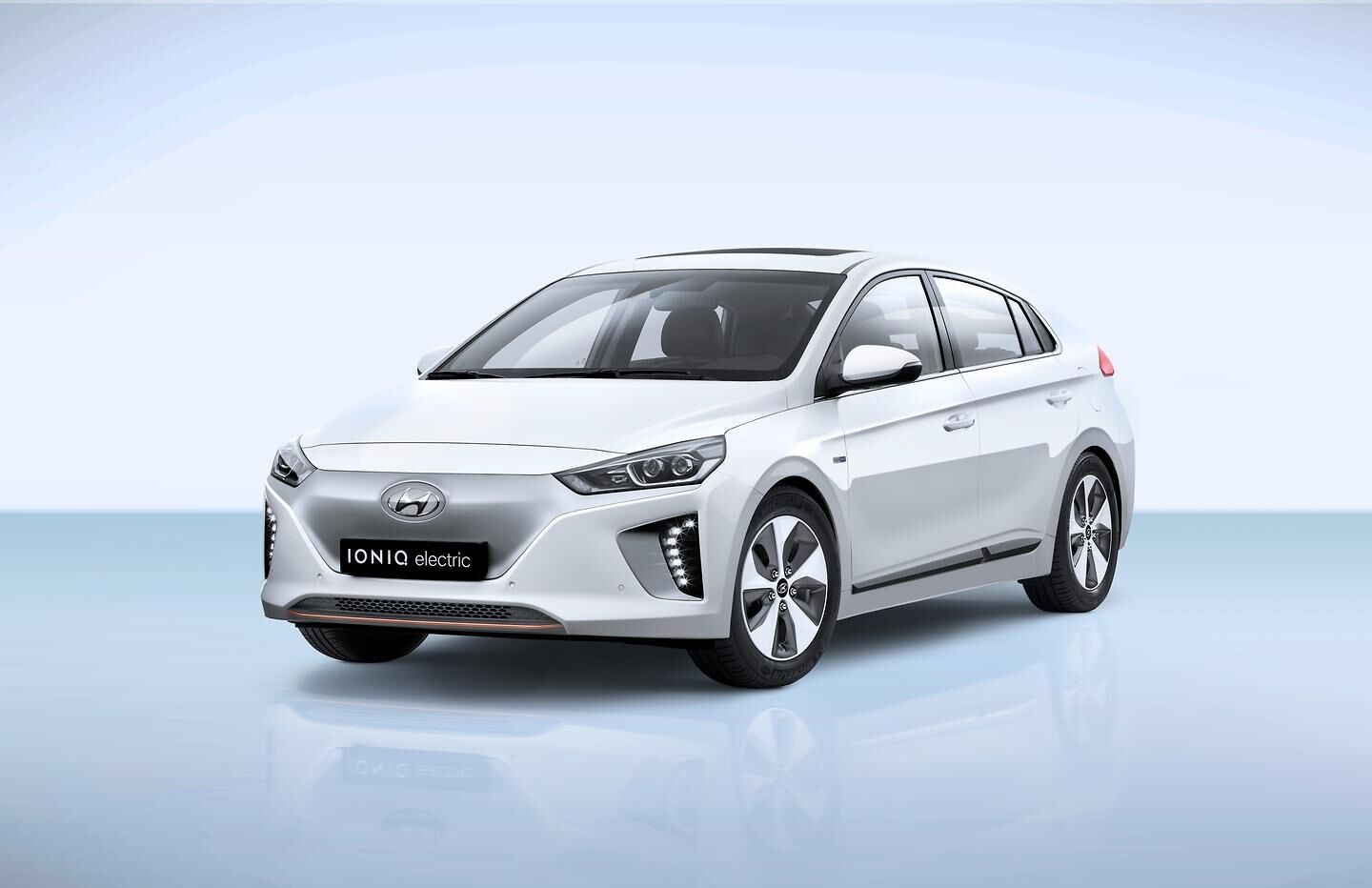

What instantly sets the IONIQ Electric apart is its front: without the motor’s need for cooling, the grille gives way to a clean and sleek surface in True Gray or Shine Gray – depending on the chosen exterior colour of the car. The line-up’s all-electric version also features low-beam LED front headlamps and rear combinations lamps with a unique pattern imparting a distinct identity to the car when looked at from behind. The electric character of the car’s design is underscored by the copper coloured character line below the rear bumper and below the front bumper, alluding to the property of copper as an excellent electric conductor. When Marina Blue, Phoenix Orange or Blazing Yellow is chosen as an exterior colour, these accents will be carried out in silver. Blazing Yellow is a colour option exclusively available for the IONIQ Electric, whereas Iron Gray, Mist Meadow and Chalky Brown can only be selected for the Hybrid and the Plug-in.
Interior design
Just as with the car’s exterior design, the interior of the IONIQ captures the model’s futuristic perspective. A ‘Purified High-Tech’ concept was established, which then evolved into the refined interior of the IONIQ.
A recurring smooth, elegant and clutter-free theme meets a warm feeling inside the IONIQ as efficient use of interior space complements a logical, structured approach applied to the layout of controls. Materials for the interior were chosen in an ecologically sensitive way and are used to create a simple and clean look throughout the car, giving the inside space a sleek, light and purified feel.
Exclusive blue colour code
The blue character line exclusively available for the IONIQ Hybrid and the IONIQ Plug-in is carried on in the interior featuring blue piping on the seats and further blue design elements on the fascia. These include a blue metallic line running below the digital instrument cluster and between the air conditioning control knobs, surrounding the centre console air vents, the audio navigation screen and outside air vents as well as the starter button. Another accent is on the lower part of the steering wheel. The interior is available in two colours a darker grey tone called Lava Stone and a light beige called Afternoon Breeze.
Copper symbolizes electricity
Inside the IONIQ Electric exclusively available copper coloured accents create the impression that electricity is flowing through the whole car’s interior. Passengers of the Electric will also notice that there is more space between the front seats. This has been achieved thanks to the shift by wire system that doesn’t have mechanical linkages between a shifter and the transmission and allows the driver to switch drive modes simply by pressing the right buttons behind the palm rest. The IONIQ Electric thus also features an electronic parking brake (EPB) at the command of the driver’s fingertips and the inductive charging tray for mobile phones is conveniently positioned right next to the shift by wire buttons.
03 Powertrains – the power of choice for customers
Developed to strive for the utmost energy efficiency without compromising driving performance, every IONIQ’s powertrain option represents a unique and uncompromising statement towards a cleaner way of mobility. The power of choice has never been as inviting as in the hands of future drivers of an IONIQ.
Breaking through hybrid stereotypes with IONIQ Hybrid & Plug-in
The IONIQ Hybrid and IONIQ Plug-in both feature the new Kappa 1.6 GDI, direct injection petrol, four-cylinder engine with a class-leading thermal efficiency of 40 per cent delivering 105 PS and 147 Nm of torque. The engine has been tailored to the hybrid application and is combined with the direct responding, smooth shifting six-speed double clutch transmission – differentiating the IONIQ from its competitors with a more dynamic driving experience. The mated electric motor enables pure electric driving and delivers instant torque as the chassis with rear multi-link suspension greatly enhances driving dynamics.
The IONIQ Hybrid’s electric motor delivers 32 kW (43.5 PS) with maximum torque of 170 Nm, powered by a lithium-ion battery with 1.56 kWh capacity positioned under the rear seats. In combination with the 1.6-GDI engine IONIQ Hybrid offers a system output of 103.6 kW (141 PS) rpm and up to 265 Nm of torque accelerating to a top speed of up to 185 km/h with targeted CO2 emissions as low as 79 g/km or lower (combined). The electric motor enables the IONIQ Hybrid to operate in pure electric mode at speeds up to 120 km/h.
Drivers choosing the IONIQ Plug-in can safely rely on 50 kilometres of estimated pure electric driving range powered by the potent 8.9 kWh lithium-ion battery. The 45kW (61 PS) electric motor together with the 1.6 GDI four-cylinder Kappa engine offer targeted CO2 emissions as low as 32 g.
Six-speed dual-clutch transmission – responsiveness guaranteed
The IONIQ Hybrid and IONIQ Plug-in both feature a six-speed dual-clutch transmission (6DCT), which boasts best-in-class transfer efficiency by the use of low-friction bearings and low-viscosity transmission oil. They therefore achieve a unique mix of driving performance and fuel efficiency. Intelligently set gear ratios combined with a clever shift strategy transfer power smoothly from gear to gear.
Both, the Hybrid and the Plug-in, use the 6DCT to engage the driver and harness the electric and combustion technologies to best effect, for a sporty and fun drive. That is how they differentiate themselves from other hybrid and plug-in hybrid cars, which are often criticized for ‘rubber band-like’ acceleration.
Enhancing the car’s fuel efficiency and dynamic driving characteristics, the driver can select SPORT or ECO modes. The SPORT function holds lower gears longer and combines power from the engine and electric motor to reward the driver with maximized performance. In ECO mode, the 6DCT optimizes the gear selection for fuel economy, shifting up earlier to higher gears to achieve class-leading fuel economy.
The powertrain components were designed to be very compact and highly efficient. The combined extra weight of the hybrid and plug-in hybrid technology therefore only adds minimal weight to the IONIQ but, significantly increases its efficiency.
Compact electric motor powered by lithium-ion battery
Electric power for the Hybrid and the Plug-in as well as for the Electric is generated by a permanent magnet synchronous motor whose parts were optimized by reducing the thickness of core components (electrical steel sheet) by up to 10% and adopting rectangular-section copper wire to decrease core and copper loss.
Hyundai Motor decided to use a lithium-ion battery pack for all IONIQ models - instead of conventional nickel-metal-hydride batteries. This provides lower memory sensitivity, excellent charge and discharge efficiency along with outstanding maximum output.
Efficient packaging was also taken into consideration as the battery system is located underneath the rear seats so that the usability of the passenger cabin and cargo area is entirely uncompromised in the IONIQ Hybrid, offering cargo space of up to 750 litres. This also holds true for the IONIQ Plug-in and the IONIQ Electric which despite larger batteries both offer generous cargo capacity of up to 650 litres.
An all-electric all-star
The IONIQ Electric offers pure e-mobility through a 28 kWh lithium-ion battery for an estimated maximum range of over 250 km. The instantly available maximum torque of 295 Nm is delivered by the electric motor with a maximum output of 88 kW (120 PS) through the single-speed reducer transmission accelerating the car up to 165 km/h.
The shift by wire system unique to IONIQ Electric enables operation of the car simply by pressing buttons to switch driving modes. Plus it eliminates the routing space required for housing the mechanical linkages between a normal shifter and the transmission, providing more space in the front of the car. The Single Speed Reducer transmission automatically and seamlessly accelerates the Electric and offers SPORT, NORMAL and ECO modes to enhance efficiency and driving characteristics.
Charging the IONIQ Electric’s lithium-ion battery up to 80% only takes about 24 minutes using a 100 kW fast charger [mention Amper]. An integrated In-Cable Control Box (ICCB) also allows drivers to charge their IONIQ at a regular household socket. The charging plug of the car is located in a position where gas fillers are normally located.
04 Advanced engineering and technology - Setting the IONIQ line-up apart
IONIQ’s engineers did not only focus on making the powertrain of each model as efficient as possible, they also set out to create cars that excelled in design, comfort and convenience of infotainment. Applying the latest technologies and engineering techniques to these areas enhances IONIQ’s appeal and elevates its status.
Advanced aerodynamics
IONIQ’s sleek, coupe-like silhouette and its simple, carefully wrought contours assist the efficient management of airflow around the exterior. Applications like front wheel air curtains, a rear spoiler and diffuser, side sill moldings, floor undercover and a closed wheel design all contribute to the car’s high aerodynamic efficiency. Additionally the Hybrid and Plug-in feature an active air flap in the front grille operated in three stages, while a sleek closed front characterizes the Electric.
Smart and efficient air condition
To provide a pleasant, comfortable and refreshing climate in the cars without using unnecessary amounts of energy, the IONIQ’s climate control can be switched to an efficient operation mode. Due to a maximum utilization of the inside air when air-conditioning or heating, ventilation losses can be minimized and the overall efficiency of the system increases. Also, the dual-zone climate control can be set to ‘driver only’ mode, reducing the load of the air-conditioning and heating.
Eco materials create clean and sustainable interior space
A Hyundai-first and a key characteristic of the IONIQ is its innovative use of recycled or ecologically sensitive materials. For example, the interior door covers are made of natural plastic combined with powdered wood and volcanic stone while providing the same quality appearance.
The softer, more natural feel is achieved alongside less reliance on oil-based products. This approach extends to other areas of the car too. Raw materials extracted from sugar cane are partly applied on the headlining and carpet helping to improve quality of air inside the car and the recyclability of vehicle parts at end of life. Paint with renewable ingredients extracted from soybean oil is used to achieve lustrous metallic colours on some of the components.
The new navigation system in the IONIQ comes with a seven-year free subscription to TomTom LIVE services. TomTom LIVE offers updated information in real time: weather, traffic, speed cameras, and online searches for points of interest.
Infotainment
To suit customers’ varied lifestyles, IONIQ features state-of-the-art infotainment and connectivity features. The IONIQ is equipped with a new generation high-resolution 7-inch TFT information cluster. With a resolution of 1280 x 720 pixels, it displays all types of gauges (speedometer, ECO, state of charge, fuel etc.) Depending on the selected drive mode, background colour and gauges are adapted to always provide the most important and useful information as well as a relaxed or sporty atmosphere by means of the colours used. Within SPORT mode, the display changes into a revolving digital speedometer that is surrounded by an analogue style tachometer, showing the engine’s rpm on red coloured ground. When choosing ECO mode the TFT-information cluster simulates the familiar speedometer needle.
The IONIQ will also cater for drivers looking to integrate their smartphone with the vehicle’s infotainment system by providing both Apple CarPlay and Android Auto. Both systems enable users to connect their devices to deliver and control music, telephone or navigation functions on screen. The seamless connectivity allows drivers and passengers to stay connected while remaining focused on the road. To ensure occupants’ phones are always charged, IONIQ also offers a wireless inductive charging pad (Qi standard) for mobile phones.
Weight reduction
One of the main questions throughout the development of IONIQ was where weight could be cut without compromising the goal to also create a fun-to-drive and comfortable car. IONIQ’s engineers used aluminium in the hood and tailgate, which reduces weight by 12.4 kg compared to the conventional steel option with no disadvantages in noise or vibration. The weight loss strategy also extended to less obvious areas like the cargo-screen cover. Due to a higher usage of lightweight components and a more compact build, the cargo-screen cover is around 25% lighter than the version used in other Hyundai models.
05 Driving performance – Low to zero emission mobility without compromise
The driving performance of the IONIQ line-up is among the best in its segment thanks to a powertrain which is specially adapted to deliver efficient mobility without compromise. Ride and handling, as well as noise, vibration and harshness levels, are tuned to contribute towards superior ride quality, while insulation in the dashboard minimizes engine noise. Damping in the floor panels as well as enhanced A and B pillar fillings, thicker window glass and noise cancelling film on the windshield further improve the quiet and comfortable ride.
The IONIQ Hybrid and Plug-in feature a multi-link rear suspension system with dual lower arm for enhanced ride comfort while a proportionately large use of aluminium for front and rear suspension components saves around 10 kg of weight compared to conventional means. A reduction of 2.3 kg per front lower arm unit saves 4.6 kg at the front, while 7.14 kg is saved at the rear with each unit shedding 3.57 kg.
The IONIQ Electric applies a torsion beam rear axle proving more space for the 28 kWh lithium-ion battery, placed below the rear seats and the spare wheel well.
IONIQ’s responsiveness and feedback from the steering system is clear and precise, with an increased steering gear ratio that helps to compound a sporty and responsive feel while reinforcing the car’s uncompromised driving experience.
Braking force is optimized to get the most out of the regenerative braking system, helping the IONIQ to maintain a healthy state of charge (SOC). Regenerative braking also operates to reduce noise, using the third generation of the brand’s energy recuperating stopping system. An Integrated Brake Assist Unit (iBAU) and Pressure Source Unit (PSU) also contribute to quieter operation than competitors. This also helps ensure ultra-low friction for maximum energy recuperation and efficiency.
A collaboration with tire manufacturer Michelin gives IONIQ enhanced levels of efficiency as the car is fitted with low rolling resistance tires from 15-, 16- and 17-inch wheels for better fuel economy, plus the car’s larger 17-inch wheels (IONIQ Hybrid) are fitted with silica tires for better performance. The multi-link suspension system of IONIQ Hybrid and Plug-in has been adapted in order to work most efficiently with low rolling resistance tires.
