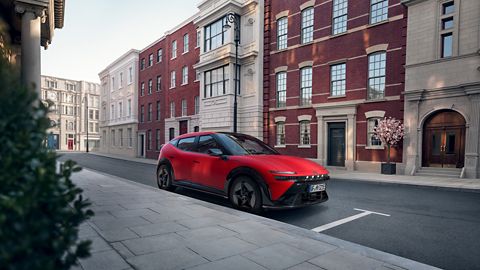

Red Hyundai IONIQ 3 N Line parked on a city street in front of attractive old buildings.

Click and you shall find

Looking for more information? You've come to the right place. Download a range of useful infos on the Hyundai IONIQ 3.

Technical Data

Explore the exact specifications

N Line

Red Hyundai IONIQ 3 N Line with dimensions illustrations.

A Overall length

0
mm

B Wheel base

0
mm

C Overall width

0
mm

D Overall height

0
mm

Prime

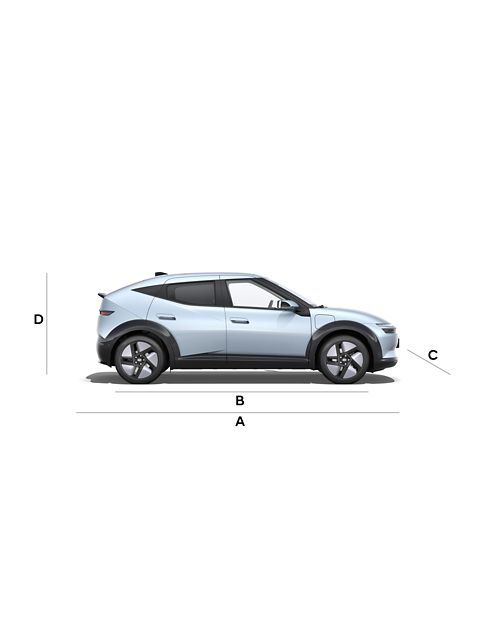

Hyundai IONIQ 3 in Ice Blue Pearl exterior colour with dimensions illustrations.

A Overall length

0
mm

B Wheel base

0
mm

C Overall width

0
mm

D Overall height

0
mm
Type Standard Range 42.2 kWh Long Range 61 kWh N Line 61 kWh
Motor Type                                                                                         Permanent Magnet Synchronous Motor (PMSM)
Max. Power (kW/PS) 107.8 / 146.5 99.5 / 135.2 99.5 / 135.2
Max. Torque (Nm) 250 250 250
Drive Type                                                                                                   Front-wheel drive
Battery
Battery Type LFP LITHIUM-ION LITHIUM-ION
Battery Capacity (kWh) 42.2 61 61
On-board Charger (OBC)                                                                                                    11 kW / optional 22 kW
Performance
Max. Speed (km/h)

170

 170 170
Acceleration 0-100 km/h (sec) 8.7 9.5 9.6
Drag Coefficient (Cd) 0.263 (standard model with 16" wheels) 0.263 (standard model with 16" wheels) 0.288 (N Line with 19" wheels)
CO2 Emissions /Efficiency Range/ Range
CO2 combined (g/km)                                                                                                               0
Energy consumption combined (kWh / 100 km) 14.1-14.8 13.7-14.1 14.8-15.5
Driving Range (km) 16" / 17" / 18" wheels: 344 / 341 / 335 16" / 17" / 18" wheels: 497 / 488 / 484 18" / 19" wheels: 456 / 428
Charge Time
Standard (AC) 11 kW OBC (10-100%) 4 h 06 min 5 h 36 min 5 h 36 min
Optional (AC) 22 kW OBC (10-100%) 2 h 06 min 2 h 42 min 2 h 42 min
Fast Charge (DC) 50 kW / 350 kW station OBC (10-80%) 42 / 29 min 68 / 29 min 68 / 29 min
Weight and Capacities
Curb Weight (kg) 1,550-1,645 1,555-1,650 1,570-1,660
Luggage Space (l)                                                                                  441=322 Trunk + 119 Megabox
Front Brakes: Type / Size (mm)                                                                                  Disc ventilated / 305 x 25
Rear Brakes: Type / Size (mm)

                                                                                 Disc ventilated / 284 x 10
Dimensions
Overall length                                         4,155 mm 4,170 mm
Wheel Base                                        2,680 mm 2,680 mm
Overall width                                         1,800 mm 1,800 mm
Overall height                                         1,505 mm 1,510 mm
