Technical Data.
Explore the exact specifications.

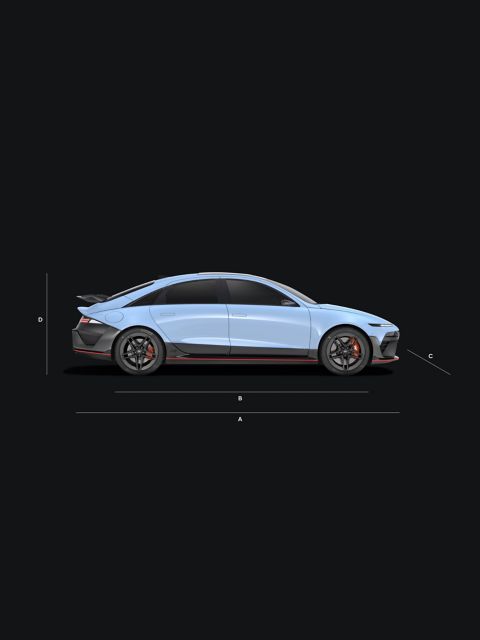

A Overall length
4,935
mm
B Wheel base
2,965
mm
C Overall width
1,940
mm
D Overall height
1,495
mm
| Type: 84.0 kWh Version | ||
| Motor Type | Permanent Magnet Synchronous Motor (PMSM) | |
| Max. Power combined (kW/PS) | 448 / 609 | |
| Max. Power w/ N Grin Boost combined (kW/PS) | 478 / 650 | |
| Max. Torque / w/ N Grin Boost (Nm) | 740 / 770 | |
Battery |
||
| Type | LITHIUM-ION | |
| Capacity (kWh) | 84.0 | |
Performance |
||
| Max. Speed (km/h) | 257 | |
| Acceleration 0-100 km/h / w/ N Grin Boost / N Launch Control (sec) | 3.4 / 3.3 / 3.2 | |
CO₂ Emissions / Efficiency / Range |
||
| CO₂ combined (g/km) | 0 | |
| Energy consumption combined (kWh / 100km) | 21.2 | |
| Driving Range (km)* | 487 | |
| * Range according to WLTP cycle. Driving range may vary slightly depending on road conditions, your driving style and the temperature. It is also is dependent on the type of tyres equipped. | ||
Charge Time |
||
| Standard (AC) | 11 kW (10-100%) | 7 hour 35 min |
| Fast Charge (DC) | 50 kW (10-80%) | 1 hour 19 min |
| Ultra Fast Charge (DC) | 350 kW (10-80%) | 18 min |
Weight and Capacities |
||
| Curb Weight (kg) | 2,166 - 2,201 | |
| Luggage Space (I) | 401 | |
Brakes |
||
| Front: Type / Size (mm) | Disc ventilated / 400 | |
| Rear: Type / Size (mm) | Disc ventilated / 360 | |
Wheel type |
||
| 20-inch forged alloy wheels / 9.5J x 20 | 275/35R 20 | |
Dimensions |
||
| Overall length | 4.935 mm | |
| Wheel base | 2.965 mm | |
| Overall width | 1.940 mm | |
| Overall height | 1.495 mm |
