Technical data
Explore the exact specifications

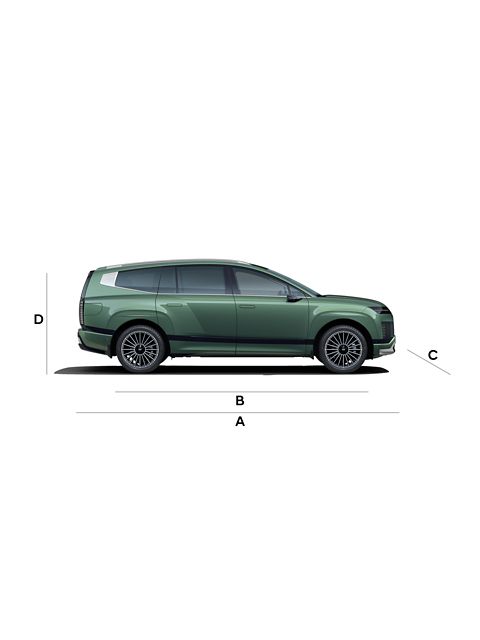

A Overall length
0
mm
B Wheel base
0
mm
C Overall width
0
mm
D Overall height
0
mm
| Powertrain and Performance | ||||||
|---|---|---|---|---|---|---|
| Engine Type | Permanent Magnet Synchronous Motor (PMSM) | |||||
| Drive | RWD |
AWD | AWD Performance | |||
| Maximum power | 160 kW | 226.1kW | 304.6kW | |||
| Maximum torque | 350 Nm | 605 Nm | 700 Nm | |||
| Maximum speed | 190 km/h | 200 km/h | 200 km/h | |||
| Acceleration from 0 to 100 km/h | 9,4 sec | 6,7 sec | 5,2 sec | |||
| Range - WLTP cycle | 620 km | 606 km | 600 km | |||
| Performance - WLTP | 19,9 kWh/100 km | 20,4 kWh/100 km | 20,6 kWh/100 km | |||
| Air Resistance Coefficient | 0,26 Cd | |||||
| Battery | |||
|---|---|---|---|
| Type | LITHIUM-ION | ||
| Capacity | 110 kWh | ||
| Maximum DC charging power (peak) | 230 kW | ||
Estimated charging time AC (10–100%) 11 kW |
10 hours | ||
Approximate charging time DC (10–80%) 150 kW |
37 minutes | ||
Approximate charging time DC (10–80%) 350 kW |
24 minutes | ||
| External Dimensions | ||
|---|---|---|
| Overall length | 5 060 mm | |
| Width (excluding mirrors) | 1 980 mm | |
| Overall height | 1 790 mm | |
| Wheel base | 3 130 mm | |
| Wheel base | 1 692-1 702 mm (front) | 1 704-1 714 mm (back) |
| Minimum ground clearance (mm) | 174 mm | |
| Angle of approach and departure | 20,1˚ | 22,9˚ |
| Weights and Payload Capacity | |||
|---|---|---|---|
| Minimum curb weight | 2 470 kg ( RWD) | 2 578 km (AWD) | 2 610 kg ( AWD Performance) |
| Maximum gross vehicle weight | 3 180 kg (RWD) | 3 300 kg (AWD) | 3 320 kg (AWD Performance) |
| Payload capacity | 710 kg (RWD) | 722 kg (AWD) | 710 kg (AWD Performance) |
| Maximum weight of a towed trailer with brakes / without brakes | 1 600 kg / 750 kg (RWD) | 2 500 kg / 750 kg (AWD) | 2 500 kg / 750 kg (AWD Performance) |
| Rear trunk capacity (VDA) | 338 l (till windows) | 908 liters (with the third-row seats folded down) | 2,419 liters (with the 2nd and 3rd-row seats folded down) |
| Front trunk capacity | 88 l (RWD) | 52 l (AWD) | |
| Wheels | |||
|---|---|---|---|
| Wheel size | 19" |
20" | 21" |
| Tire size | 255/60 R19 | 275/50 R20 | 285/45 R21 |
